import com.ireasoning.protocol.snmp.*;
import javax.swing.*;
import javax.swing.table.*;

/**
 * This class demonstrates retrieving SNMP table and polling table periodically.
 * <pre>
 * Example:
 * java snmpgettable localhost tcpConnTable
 * java snmpgettable localhost iftable
 * java snmpgettable localhost ifTable
 * java snmpgettable -o localhost ipRouteTable
 * </pre>
 *
 * Example Result:

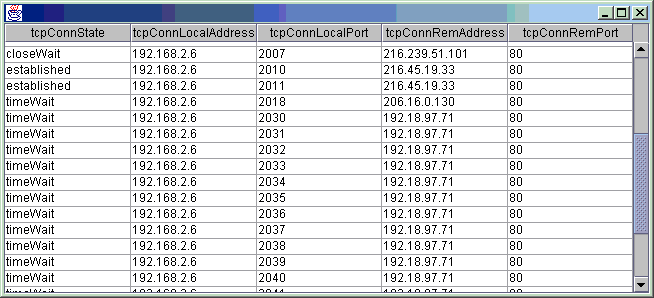

java snmpgettable localhost tcpConnTable

*/ public class snmpgettable extends snmp { public static void main(String[] args) { snmpgettable s = new snmpgettable(); s.parseOptions(args, "snmpgettable"); s.getTable(); } private void getTable() { try { SnmpSession session = new SnmpSession(_host, _port, _community, _community, _version, _transportLayer); if(_isSnmpV3) { session.setV3Params(_user, _authProtocol, _authPassword, _privProtocol, _privPassword, _context, null); } //Loading necessary mibs already handled in super class (snmp.java) SnmpTableModel table = session.snmpGetTable(_oids[0]);// _oids[0] is the table name like "tcpConnTable" if(table == null) { System.err.println( "Table not found in loaded MIBs"); return; } SnmpOID authFailureOID = table.getAuthFailureOID(); if(authFailureOID != null) { System.out.println( "Authentication failed. Reason:"); snmp.printAuthFailReason(authFailureOID); return; } //print to standard out for (int i = 0; i < table.getRowCount() ; i++) { print(table.getRow(i)); } // print(session.snmpGetTableColumn("ifSpeed")); //get ifSpeed column table.setTranslateValue(true);// to use values defined in MIB table.startPolling(30);//poll table every 30 seconds //show the result in Swing's JTable showTable(table); // Thread.sleep(45 * 1000); // table.refreshNow(); // Thread.sleep(45 * 1000); // System.out.println( "To stop polling"); // table.stopPolling(); // session.close();// !!! Do NOT close session, since it's used by polling thread } catch(Exception e) { System.out.println(e); e.printStackTrace(); } } /** Displays table in a JFrame */ public static void showTable(TableModel model) { JFrame f = new JFrame(); JTable jt = new JTable(model); jt.setAutoCreateColumnsFromModel(true); JScrollPane pane = new JScrollPane(jt); f.getContentPane().add(pane); f.setSize(790, 590); f.setVisible(true); f.addWindowListener(new java.awt.event.WindowAdapter() { public void windowClosing(java.awt.event.WindowEvent e) { System.exit(0); } }); } // ---------------------------------------------------------------------- // Parsing command line options // ---------------------------------------------------------------------- protected void printExample(String programName) { System.out.println( "java " + programName + " localhost tcpConnTable"); System.out.println( "java " + programName + " localhost iftable"); System.out.println( "java " + programName + " localhost ifTable"); System.out.println( "java " + programName + " -o localhost ipRouteTable"); } }// end of class snmpgettable
